High Tensile Strength Dredging HDPE Pipe For Pressure 0.4 - 2.0Mpa Applications

Ask Lasest Price
Brand Name :	Jiubei
Model Number :	DN400
Certification :	ISO, SGS
Price :	15-30 usd/m
Delivery Time :	15days
Payment Terms :	tt
Supply Ability :	2000M/MONTH

Add to Cart

Product Details
Company Profile

High Tensile Strength Dredging HDPE Pipe For Pressure 0.4 - 2.0Mpa Applications

Product Description:

Features:

The flanged HDPE dredging pipe is designed for easy connection, effectively reducing the sways and jolts caused by waves, resulting in a smoother flow of medium through the pipes.

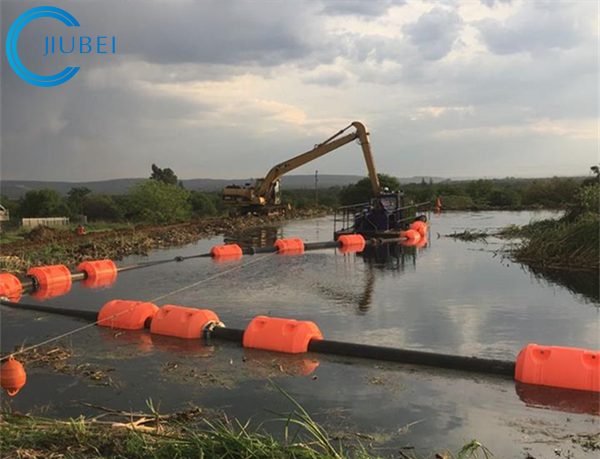

These HDPE dredging pipes are specifically intended for use in various port applications such as drainage, water-logging, dredging, and sand discharging.

Technical Parameters:

Item and Requirements for Pipe Material

No.1: Elongation at break%
The required elongation at break for the pipe material is equal or greater than 350%.
No.2: Longitudinal reversion (100℃)
The pipe material must have a longitudinal reversion rate of less than or equal to 3% when exposed to a temperature of 100℃.
No.3: Oxidation induction time (200℃)
The pipe material must have an oxidation induction time of at least 20 minutes when exposed to a temperature of 200℃.
No.4: Weather resistance
After the pipe has undergone aging energy of 3.5GJ/㎡ or more, it must meet the following requirements:

The pipe must maintain its static hydraulic strength at a temperature of 80℃ for a minimum of 165 hours, without any breakage or leakage.
The percentage of breaking-elongation for the pipe must be equal or greater than 350%.
The pipe material must have an oxidation induction time of at least 10 minutes when exposed to a temperature of 200℃.

Outside Diameter(mm)	Wall thickness(mm)
	SDR26	SDR21	SDR17	SDR13.6	SDR11
	0.4Mpa	0.6Mpa	0.8Mpa	1.0Mpa	1.25Mpa
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2
800	30.6	38.1	47.4	58.9
900	34.4	42.9	53.3	66.2
1000	39.2	47.7	59.3	73.6
1200	45.9	57.2	70.6
1400	53.9	66.7	82.4
1600	61.6	76.2	94.2

Applications:

Customization:

Customization Service for Dredging HDPE Pipe

Brand Name: Jiubei
Model Number: DN400
Place of Origin: China
Certification: ISO, SGS
Minimum Order Quantity: 200m
Price: 15-30 usd/m
Packaging Details: STANDARD SEA WORTHY PACKAGING
Delivery Time: 15 days
Payment Terms: tt
Supply Ability: 2000M/MONTH
Color: Black With Blue Strips
Material: HDPE PE100
Flexibility: Excellent
Density: 0.945
Pressure: 0.4~2.0Mpa
Key Words: PN10 ISO4427 HDPE pipe, HDPE pipe, DN500 HDPE pipeline
