    4m Diameter UHMWPE Polyethylene Mooring Buoy Impact Resistant

    Ask Lasest Price
    Brand Name : Jiubei
    Model Number : JB4000MOORING BUOY
    Certification : ISO
    Price : 20000usd
    Payment Terms : L/C, T/T
    Supply Ability : 20units/month
    Delivery Time : 7working days
    • Product Details
    • Company Profile

    4m Diameter UHMWPE Polyethylene Mooring Buoy Impact Resistant

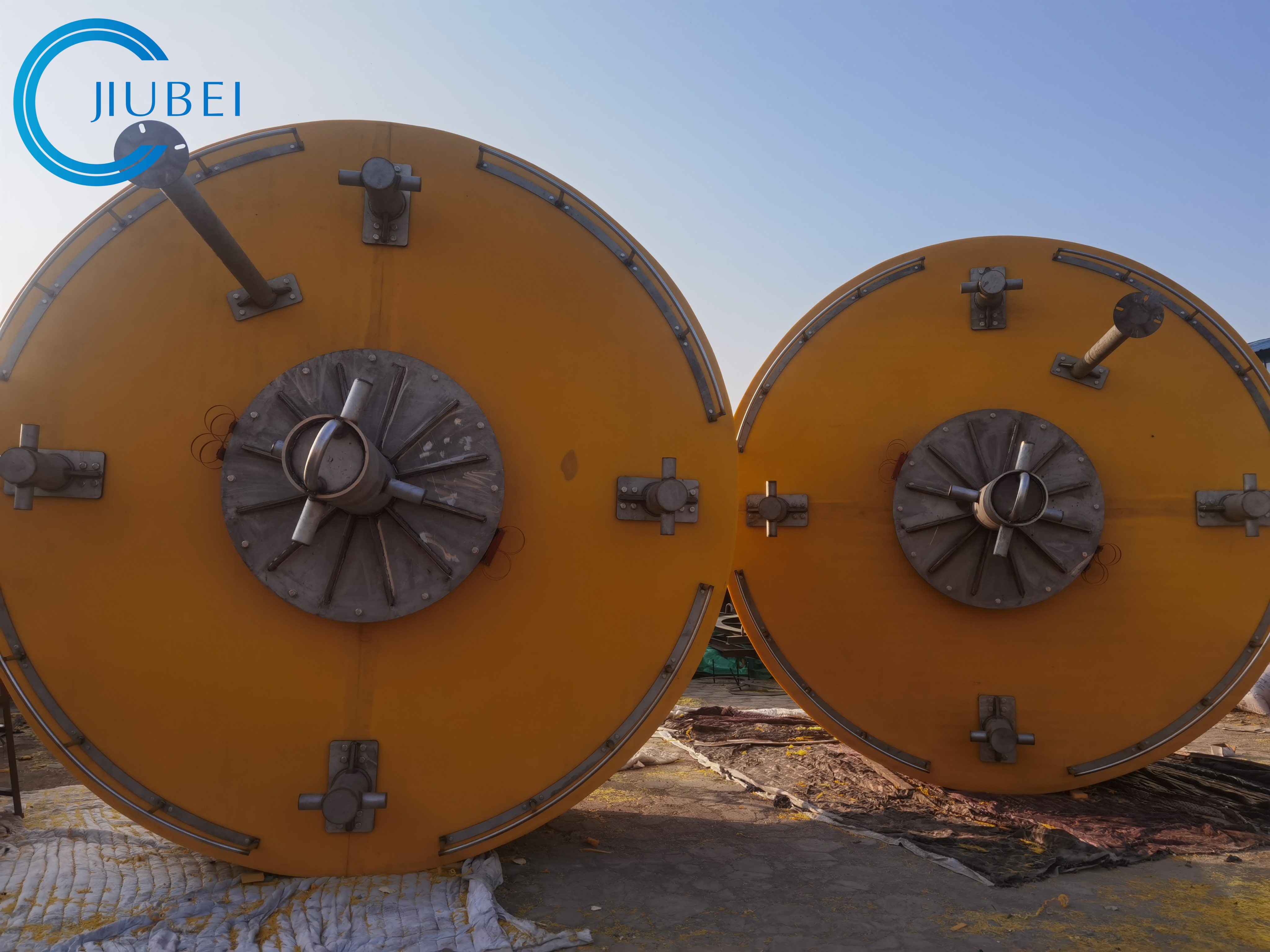

    4m diameter UHMWPE Mooring Buoy


    Navigation Buoy is kind of signal for vessel guiding, positioning, obstacles marking and warning marking. The buoy consists of light stand, floating body and tail pipe. The light stand is used for the signal light, which will provide light signal for vessels, the floating body will provide sufficient buoyancy for the buoy, and the tail pipe with ballast is to guarantee the stability of the buoy.


    Model No.JB-1200JB-1500JB-1800JB-2100JB-2400JB-3000
    Width (mm)120015001800210024003000
    Height (mm)390045005300650075006700
    Wall Thickness (mm)101016161616
    Free board(mm)>500>600>700>800>900>1000
    Focal Plane Height(mm)>2000>2500>3000>4400>4500>6000
    Weight (kg)60012002000300036005000
    Reserve buoyancy (kg)60010002000330040006500
    Anchor chain(mm)17.52228343438
    Sinker (kg)100020003000400050008000
    Mooring depth(m)3-104-155-255-305-405-60
    Available ColorsRed, Green, White, Yellow as per IALA Recommendations
    FillingClosed-cell polyurethane foam(float section)
