Brand Name : | JiuBei |
Certification : | ISO |
Price : | usd50/m |
Payment Terms : | L/C, T/T |
Supply Ability : | 3000m/month |
Delivery Time : | 7working days |

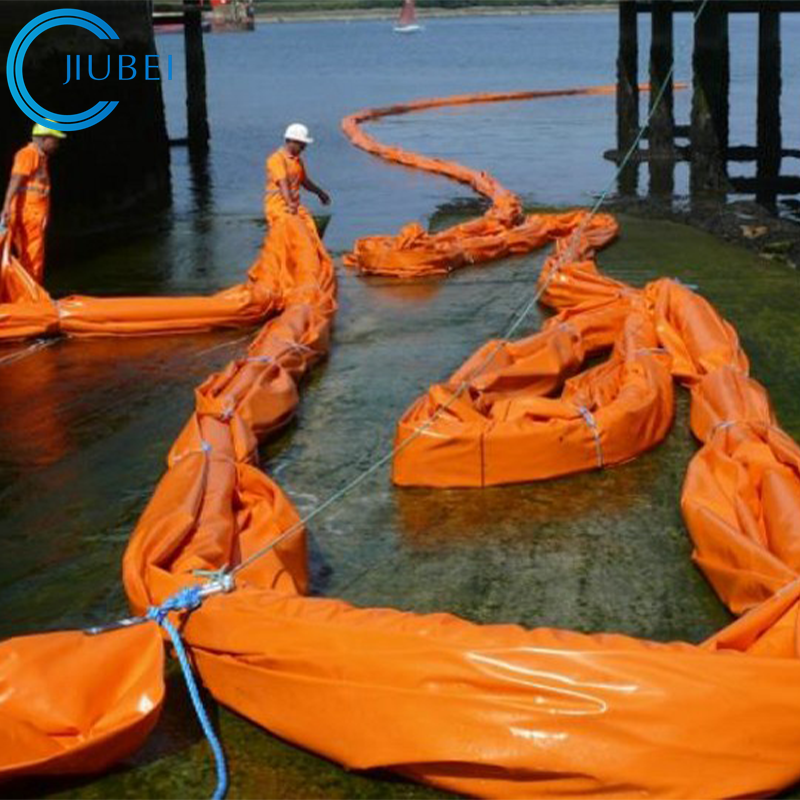

Permeable Floating Silt Curtain for Turbidity Control in Water
PVC Silt Curtain is the main product to protect the environment in
the sea and large river. It can prevent the silt when reclamation,
port construction and other project.The main purpose to protect the
environment is to stop the suit from being widely diffused. The
application of using silt curtain is an useful and popular way at
the moment.
The Silt Curtain includes the floating and skirt. The floating
pocked is PVC material. It's UV restraint. The floating is EPS, and
sealed with plastic film. The floating is very soft, it can be
folded one by one. The chain is at the bottom of the skirt to make
sure of its stability.The rope and reinforcing belt as well as
chain are stressed in longitudinal. There is anchor socket on both
sides of silt curtain in order to connect each piece easily.
Technical Parameters:
Technical Date | |||||||
Model | WGJ600 | WGJ800 | WGJ900 | WGJ1000 | WGJ1100 | WGJ1500 | |
Freeboard(mm) | 210 | ||||||
Draught(mm) | 280 | ||||||
Section’s length(m) | 20 | ||||||
Working condition | Tention strength(kn) | 60 | 65 | 80 | 90 | 100 | 130 |
Wave height(m) | 0.6 | 0.75 | 1.0 | 1.5 | 1.5 | 2.0 | |
Wind speed(m/s) | 10 | 15 | 15 | 15 | 20 | 20 | |
Current speed(knot) | 1.2 | 1.5 | 2.0 | 3.0 | 3.0 | 3.0 |
Note: We pursue perfect products quality, if any change, subject to confirmation from both parties.
![]() |
