    Orange Hose Poly Pipe Floats Dredging Floaters Floating And Dredging Equipment 500mm

    Ask Lasest Price
    Brand Name : Jiubei
    Model Number : DN400 PE pipe float
    Price : usd50/pair
    Payment Terms : L/C, T/T
    Supply Ability : 300units/month
    Delivery Time : 7working days
    MOQ : 10 pairs
    • Product Details
    • Company Profile

    Orange Hose Poly Pipe Floats Dredging Floaters Floating And Dredging Equipment 500mm

    High Impact Resistant Orange Color Dredging Pipe Floats

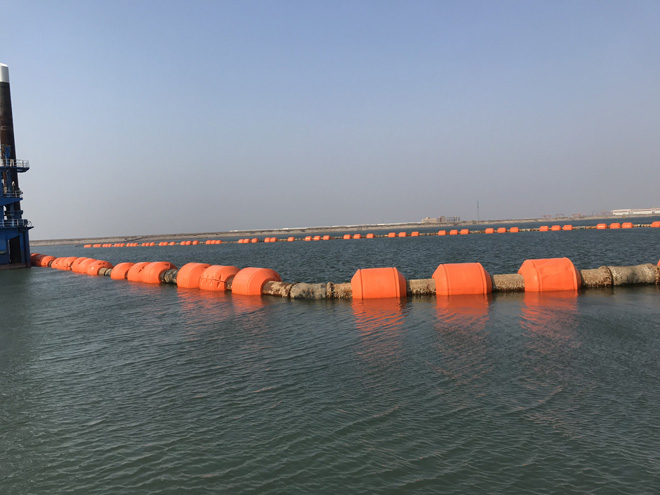

    Medium density polyethylene floating body is a new product produced by our company. The shell of this product is made of medium density polyethylene with excellent toughness and filled with high-strength polyurethane foam. Reasonable structure and excellent performance. As a floating material for the water sludge discharge pipe, it has become a substitute for the traditional steel pontoon.

    Product performance characteristics:

    1. Good toughness and excellent impact resistance, especially suitable for offshore construction.

    2. Light weight, easy to install and carry, and low transportation and transfer cost.

    3. Wear resistance and long service life.

    4. The price is low, and the performance-price ratio is significantly better than the steel buoy.

    Note:

    1. Two sections of the floating body are one group (one section consists of two pieces), which can float up to 6 meters of mud pipe and 1.5 meters of rubber hose;

    2. Floating bodies of various specifications with an outer diameter of 4 meters and a length of less than 4 meters can be produced.


    High Impact Resistant Orange Color Dredging Pipe Floats Specification:

    ItemOut shell dataItemInner Foam
    Tensile Strength≥13.1MPaAbsorption1-2g/100cm2
    Elongation at break≥11.1%Breaking Strength0.08-0.1MPa
    Impact strength≥32.1KJ/m2Elongation at break4-6%
    Bending Strength≥15.7MPaCompressive strength0.1-0.24MPa


    High Impact Resistant Orange Color Dredging Pipe Floats Dimension:

    Float I.D.
    (mm)
    Float O.D.(mm)Float
    Length(mm)
    Thickness
    of Hull(mm)
    Floater
    Buoyancy (kg)
    110500500798
    1255008007150
    1605008007145
    2206007007180
    2506007007175
    2807009007340
    31090010008550
    320100010009650
    35095010009600
    390100010009600
    400110011009900
    45012001200111100
    46013001300121400
    49513001300121400
    52013001450121500
    55013001500121750
    56014001500121900
    60014001600132100
    62014501700132400
    67015001860142800
    72015001860142800
    73515001800142700
    76018002050153100
    80018002160153300
    89020002400154600
    94020402500164900
    104024002600167000
    114023002550167000
