    Hose UHMWPE Pipe Diameter 1000MM Sand Dredging Pipelines Petroleum Transport

    Ask Lasest Price
    Brand Name : JiuBei
    Certification : ISO
    Price : usd5/m
    Supply Ability : 3000m/month
    Delivery Time : 7working days
    • Product Details
    • Company Profile

    Hose UHMWPE Pipe Diameter 1000MM Sand Dredging Pipelines Petroleum Transport

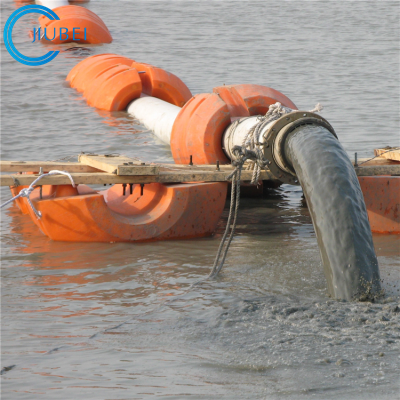

    Sand Dredging Pipelines Petroleum Transport UHMWPE Pipes



    Advantage:
    Our HDPE water supply and drain pipes are manufactured for excellent performance and long life.
    • Its butt joints eliminate potential leak points, common with ductile iron 10 to 20 feet long, with a zero leak rate.
    • Highly resistant to corrosion and weathering, recent studies conclude that it will last at least 50 years.
    • Lightweight and flexible for easy installation, eliminating the need for accessories when changing orientation and making it ideal for use in earthquake-prone areas.
    • High strength walls give it the highest PE pressure levels, excellent resistance to SCG and increased resistance to rapid crack growth.
    • The labor stress level of high performance PE plastic makes it a superior choice over ductile iron or steel pipes, especially for large diameter pipes.

    UHMWPE Pipe Specification

    O.D.
    DN(mm)

    0.4MPa0.6MPa0.8MPa1MPa1.25MPa1.65MPa2.0MPa

    Thickness
    mm

    Thickness
    mm

    Thickness
    mm

    Thickness
    mm

    Thickness
    mm

    Thickness
    mm

    Thickness
    mm

    1104.76.07.49.211.4
    1255.46.78.310.312.7
    1406.07.79.511.814.6
    1605.26.98.610.713.316.4
    1805.97.79.611.914.718.2
    2196.58.610.813.416.620.5
    2254.97.39.711.914.818.422.7
    2505.58.110.713.416.620.625.4
    2806.29.112.015.018.723.228.6
    3156.910.213.516.921.126.132.2
    3507.811.515.319.123.729.436.3
    4008.813.017.221.526.733.140.9
    4509.814.619.113.929.736.8
    50011.016.221.426.733.241.2
    56012.318.224.130.037.4
    63013.820.527.233.942.1
    70015.322.730.638.1
    80018.026.038.1
    90020.030.042.1
    100022.033.0


    Lower Coefficient of Friction
    The UHMWPE material is regarded as the ideal cost/performance abrasive resistant material in the tribology field. With good friction coefficient of 0.07-0.11, and good self lubrication, the UHMWPE material will be difficult to have sea growth.

    Material

    No Lubrication

    Water Lubrication

    Oil Lubrication

    UHMWPE0.1-0.220.05-0.10.05-0.08
    PTFE0.04-0.250.04-0.080.04-0.05
    POM0.15-0.350.1-0.200.05-0.10
    Nylon 660.15-0.400.14-0.190.02-0.11
