Name: High density foam filled pipe floater for marine dredging
sand/slurry discharging project
1, Characteristics of polyethylene floating body
1. The floating body is impact-resistant, wind-wave resistant,
compact and reasonable in structure, simple in installation and
excellent in performance. It has become the product of choice for
sediment transportation and discharge customers today.
2. Light weight and large buoyancy. Good toughness, strong
resistance to environmental stress cracking, suitable for offshore
and lake construction.
3. High bearing capacity, light weight, strong wear resistance,
easy installation and handling, low transportation and transfer
cost, stable and durable cylinder.
4. Corrosion resistance, strong weather resistance, long service
life, 3 times the service life of steel pontoon. Anti-corrosion,
anti-freezing, anti-oxidation, and free from the erosion of
seawater, chemicals and aquatic organisms. Low absorption.
5. Assembly is simple, fast, flexible and diverse. Simple
construction and low maintenance cost.
6. The price is low, and the performance-price ratio is obviously
better than the steel buoy. Temperature resistance range: - 60-80
℃.
7. Because of its stable quality, novel shape, reasonable price and
excellent service, it is deeply welcomed by users.
2, Polyethylene floating body function
1. Ensure the floating of the transmission pipeline.
2. The orange appearance color can be used as a warning sign to
prevent impact on the pipeline.
3. It is convenient for inspection and maintenance of transmission
pipeline.
4. Shorten the construction period, reduce the cost and reduce the
maintenance cost.
3, Use of polyethylene floating body
High bearing capacity, light weight, strong wear resistance, easy
installation and handling, low transportation cost, stable and
durable cylinder.

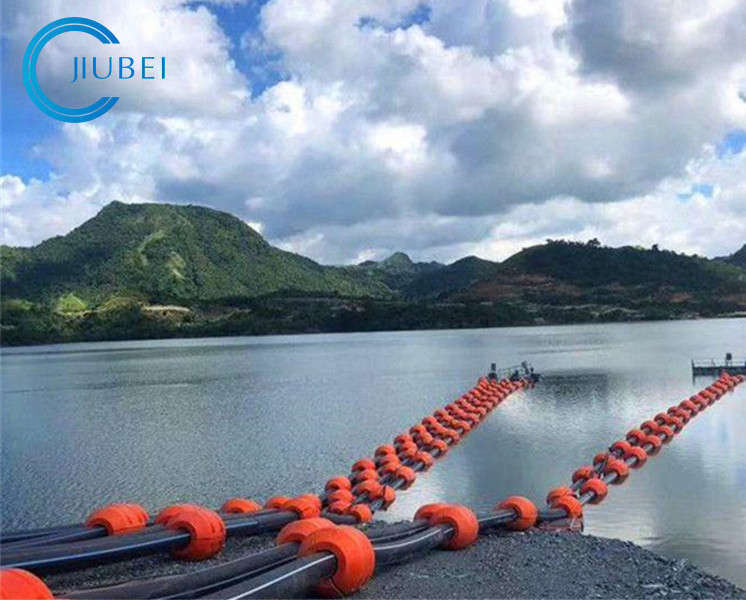

It is mainly used to clean up river channels, dredge, dredge
sediment, dredge fill, port expansion, ocean, reclamation and land
reclamation, river and other dredger, dredger, dredger and pipeline
laying. The dredging works of the channel, the above-water
pipelines such as dredgers, pipelines and dredgers, and the
underwater pipelines for oil transmission can also be used as
floating cables.
4, Calculation of demand for polyethylene floating body
The floating body produced by our company is designed according to
the buoyancy gravity ratio of 130%, which can float 6 meters of
steel pipe and 2 meters of flange rubber hose. If you want to
increase the buoyancy, you can also design it separately. Please
determine according to the specific situation of the construction
and the pipeline weight and sediment density.

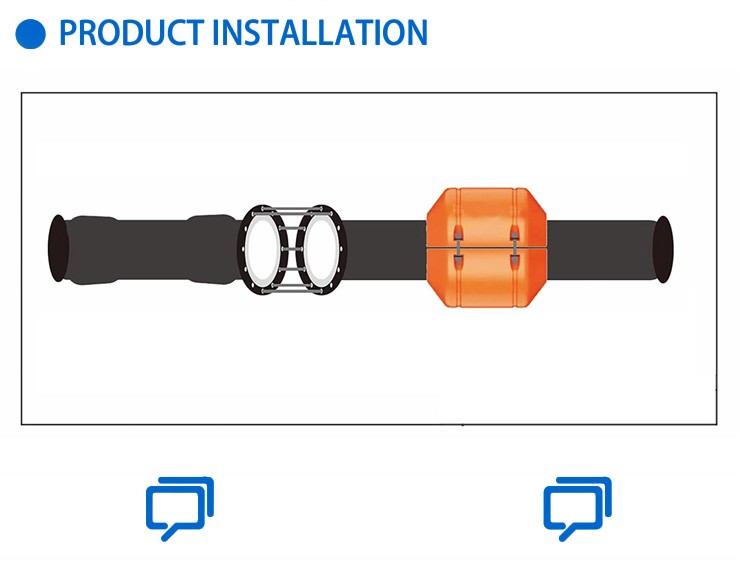

5, Installation of polyethylene floating body
The polyethylene floating body shall be installed with the base
plate, bolts and straps provided by the manufacturer. The tightness
shall be appropriate during installation, and the plastic shall not
be deformed. The installation shall be equipped with double nuts.
During installation, avoid sharp objects stabbing the floating body
Dimensions of the High density foam filled pipe floater for marine
dredging sand/slurry discharging project:
Float I.D.
(mm) | Float O.D.(mm) | Float
Length(mm) | Thickness
of Hull(mm) | Floater
Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
Detail pictures:
RFQ:
Q: I am good at Portuguese and Spanish. Do you have sales who can
speak these two languages to help with us?
A: Both languages are okay to us. Please don't worry.
Q: Can we put our logo or company name on your products?
A: Of course, we can design the logo for you or mark the logo on
the product according to your requirements.
Q: I only need one. Can you produce it?
A: First of all, if what you need is our standard size product, we
can produce it for you when we produce other products of the same
size. Secondly, if you need non-standard products, we can customize
them according to your requirements. But considering the cost of
production and transportation, we suggest you refer to our standard
specifications.
Q: Our parent company is in one country, but our projects are in other places. Will you have any logistic
problems in processing the order?
A: We have a professional logistics team, which can perfectly solve
your transportation problems and timely give you tracking feedback
on logistics.
